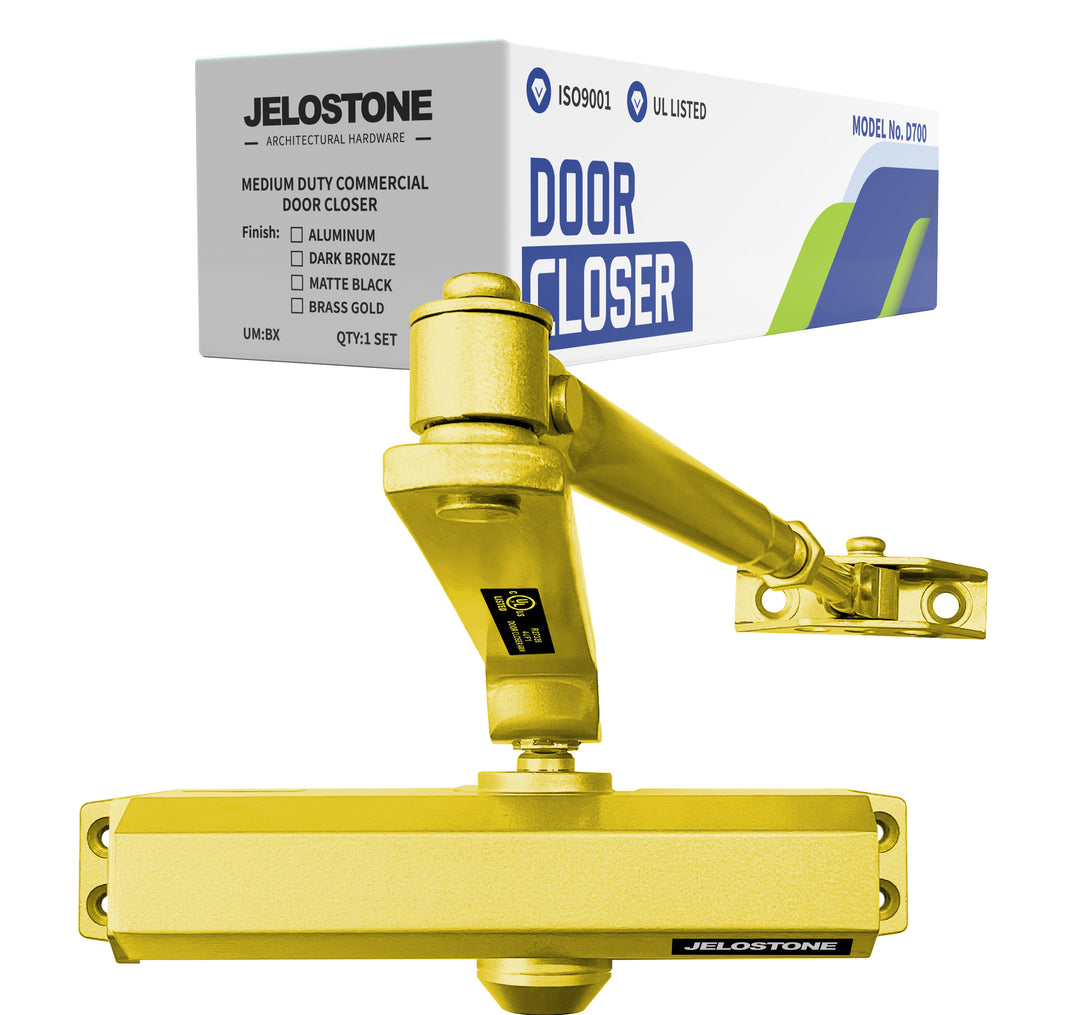

JELOSTONE Medium Duty Commercial Door Closer D700, 3 Valves Closing/Latching/Backcheck, UL 3 Hour Fire Rated, Fixed Size #3 Spring Power, Door (55-150LB/33-36 in), Indoor/Outdoor
Manufacturer: JELOSTONE
About this item

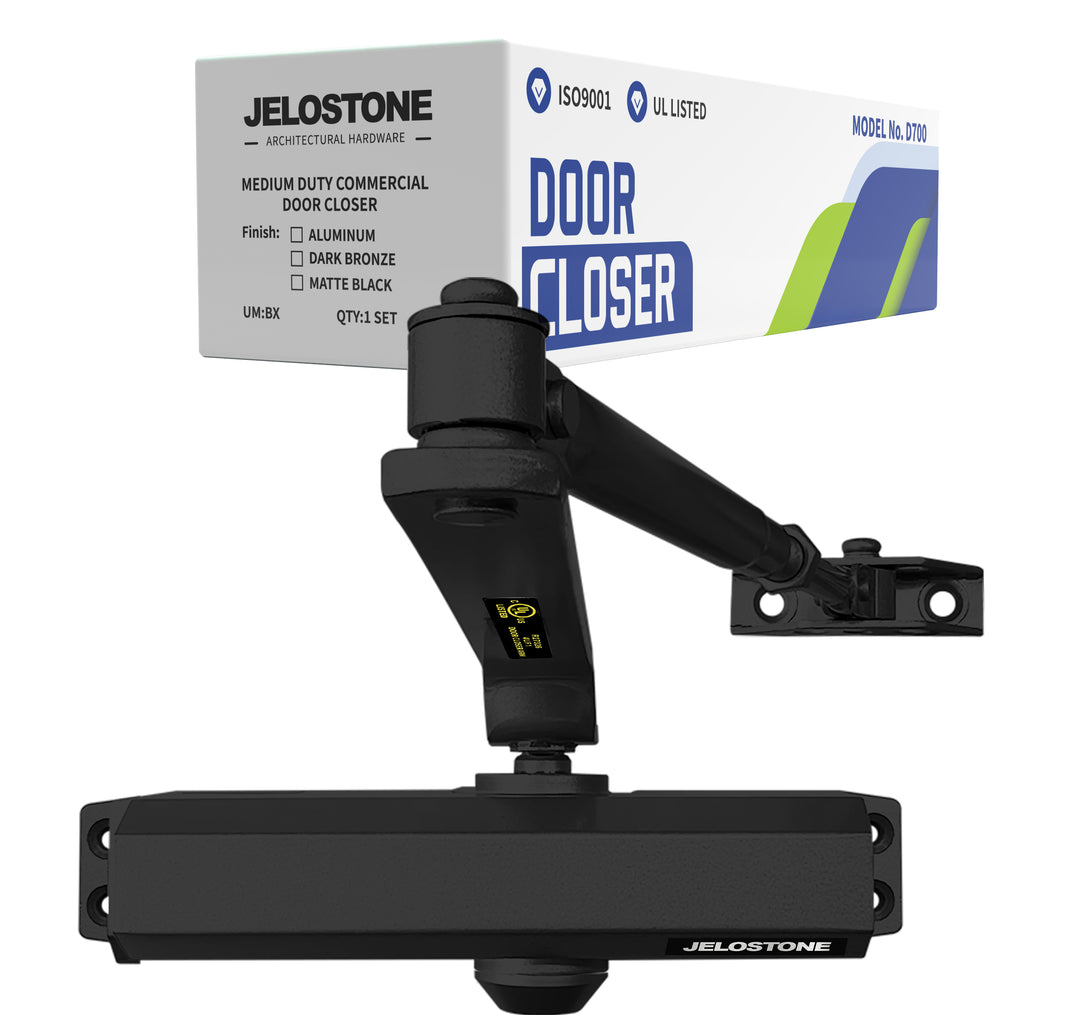

JELOSTONE D700 - Medium Duty Commercial Door Closer
𝐄𝐟𝐟𝐨𝐫𝐭𝐥𝐞𝐬𝐬𝐥𝐲 𝐀𝐝𝐣𝐮𝐬𝐭𝐚𝐛𝐥𝐞: JELOSTONE D700 Commercial Door Closer is engineered for ease and flexibility. With a fixed size #3 spring power, tailor the opening and closing force to your door's specific weight range (55lbs-150lbs). It fits a variety of door types and materials, including Wood, Metal, Glass, Vinyl, Fiberglass, Composite, and PVC.
𝐑𝐞𝐚𝐝𝐲 𝐟𝐨𝐫 𝐀𝐧𝐲 𝐒𝐞𝐭𝐭𝐢𝐧𝐠: Designed for both indoor and outdoor environments, our door closer automatically locks up to contain flames and smoke for up to 3 hours in the event of a fire, enhancing both property and personal safety.
𝐄𝐧𝐡𝐚𝐧𝐜𝐞𝐝 𝐀𝐜𝐜𝐞𝐬𝐬𝐢𝐛𝐢𝐥𝐢𝐭𝐲: Our door closer goes beyond standard accessibility. It is a non-handed closer that will work on left- or right-handed doors exposed to extreme temperatures.

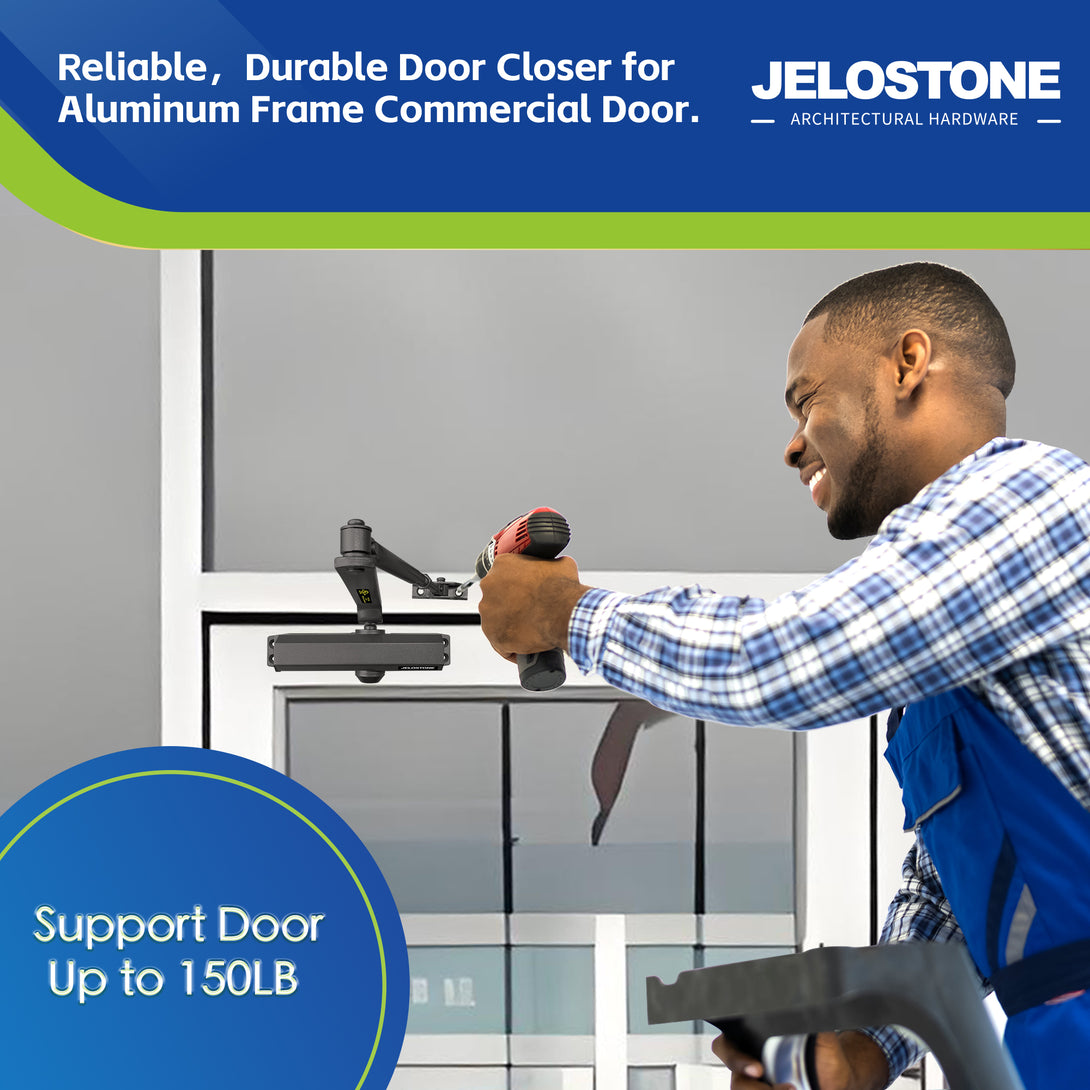

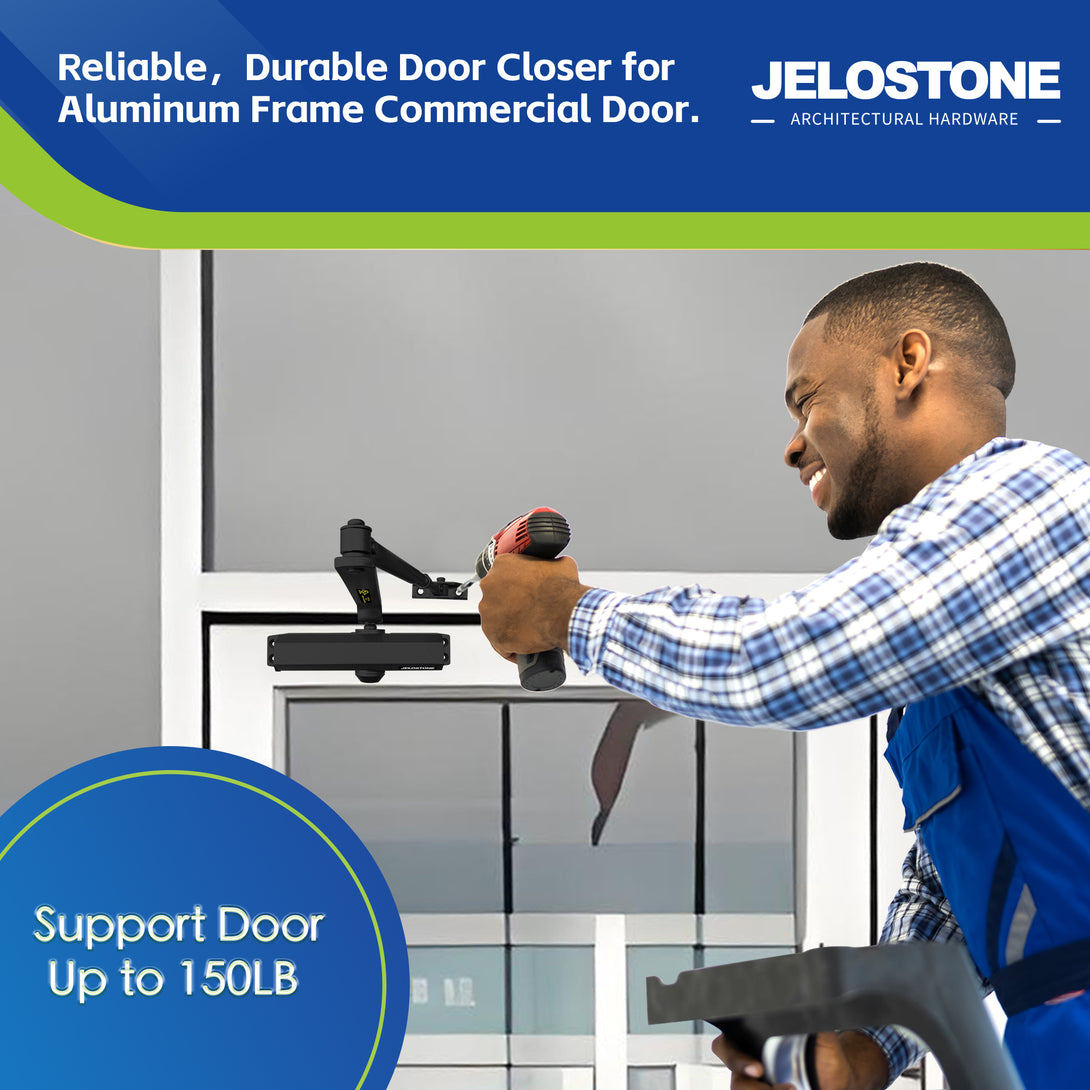

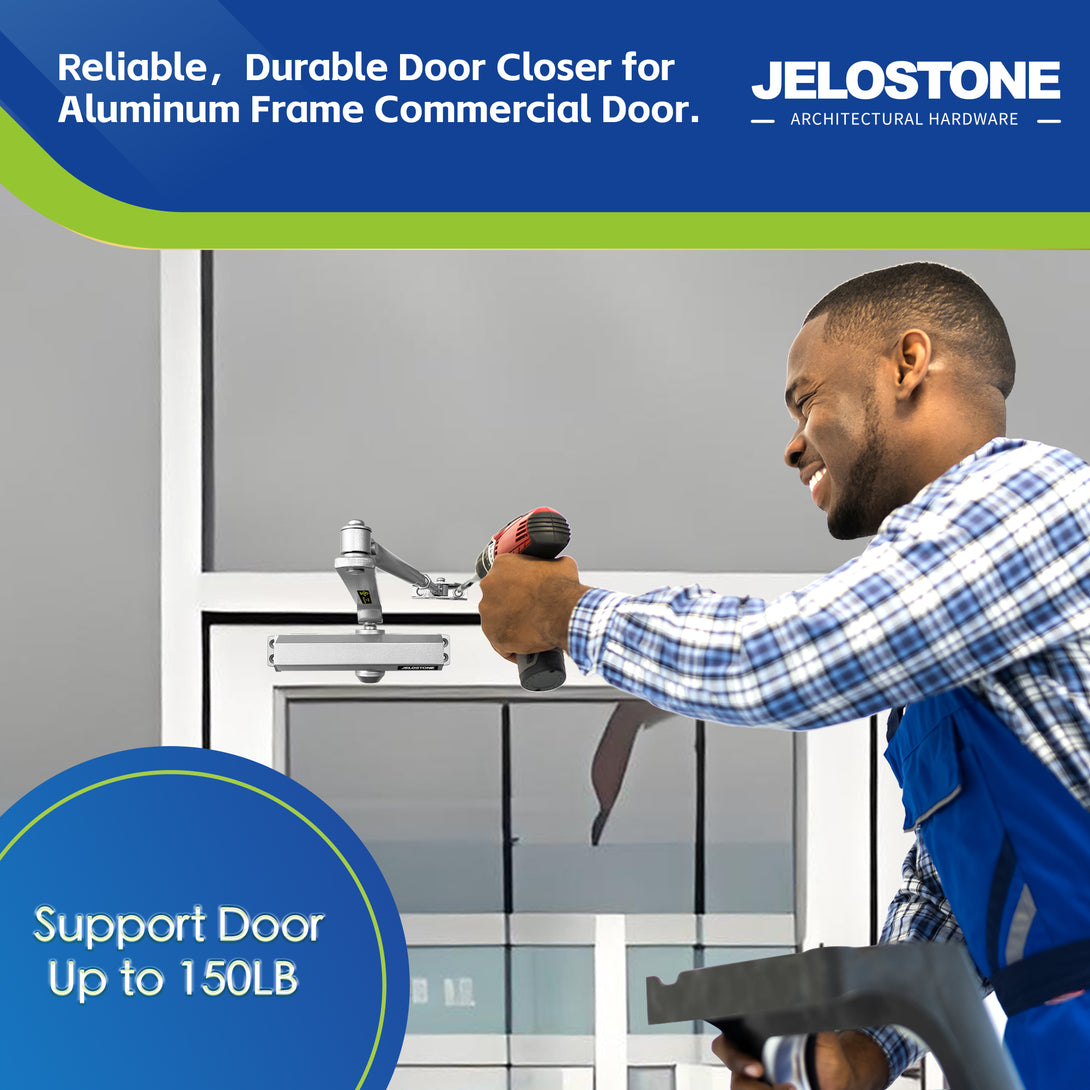

𝐁𝐮𝐢𝐥𝐭 𝐭𝐨 𝐋𝐚𝐬𝐭: Crafted with a durable aluminum alloy and equipped with a robust spring and piston, our door closer is ideal for high-traffic areas such as storefronts and public spaces. Tested for 1 million cycles, it promises long-lasting reliability.

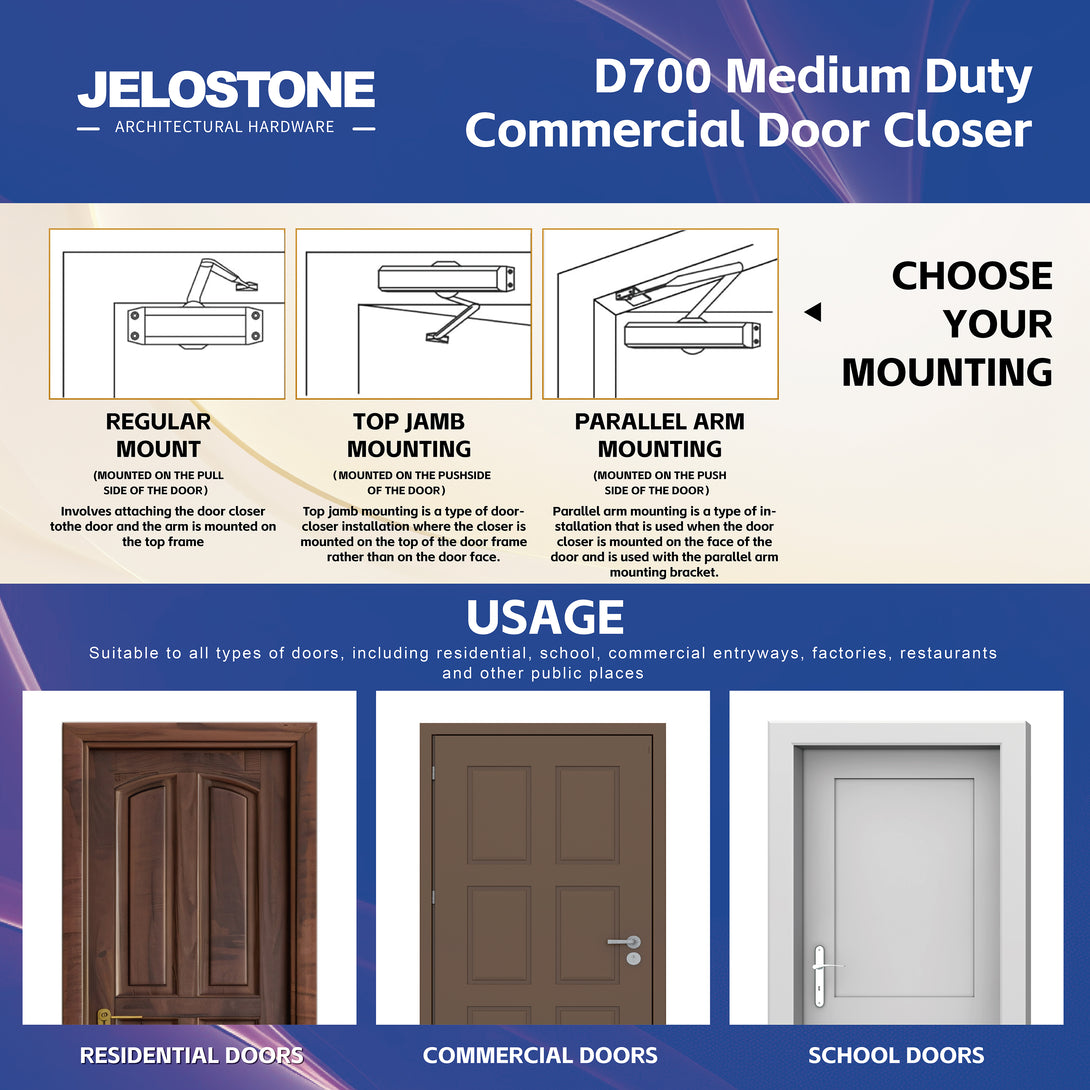

𝐌𝐮𝐥𝐭𝐢𝐩𝐥𝐞 𝐌𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐎𝐩𝐭𝐢𝐨𝐧𝐬
𝐑𝐞𝐠𝐮𝐥𝐚𝐫 𝐌𝐨𝐮𝐧𝐭𝐢𝐧𝐠
Mounted on the Pull Side of the Door. It involves attaching the door closer to the door and the arm is mounted on the top frame.
𝐓𝐨𝐩 𝐉𝐚𝐦𝐛 𝐌𝐨𝐮𝐧𝐭𝐢𝐧𝐠
Mounted on the Push Side of the Door. The top jamb mounting is a type of door closer installation where the closer is mounted on the top of the door frame, rather than on the door face.
𝐏𝐚𝐫𝐚𝐥𝐥𝐞𝐥 𝐌𝐨𝐮𝐧𝐭𝐢𝐧𝐠
Mounted on the Push Side of the Door. the parallel arm mounting is a type of installation that is used when the door closer is mounted on the face of the door and is used with the parallel arm mounting bracket.

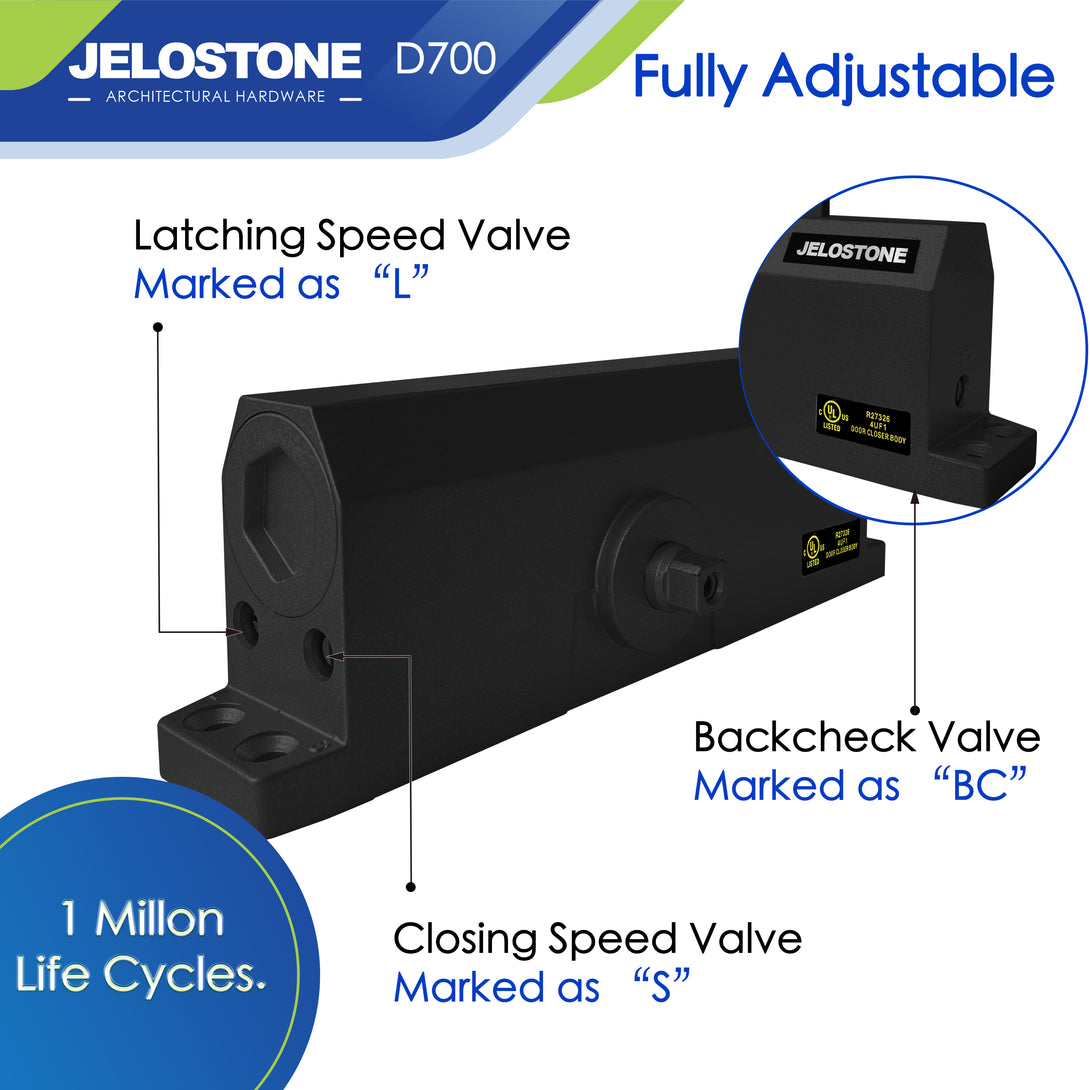

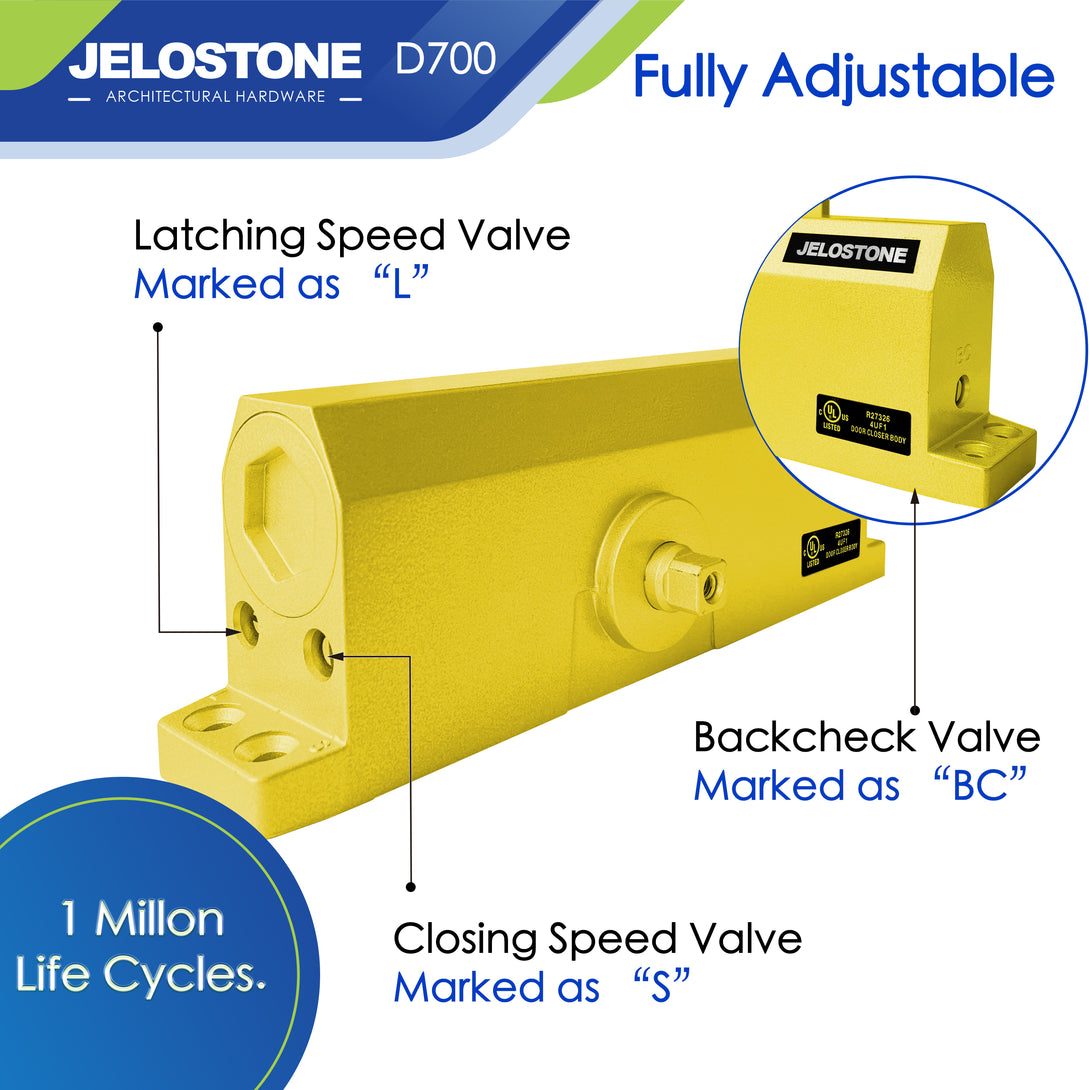

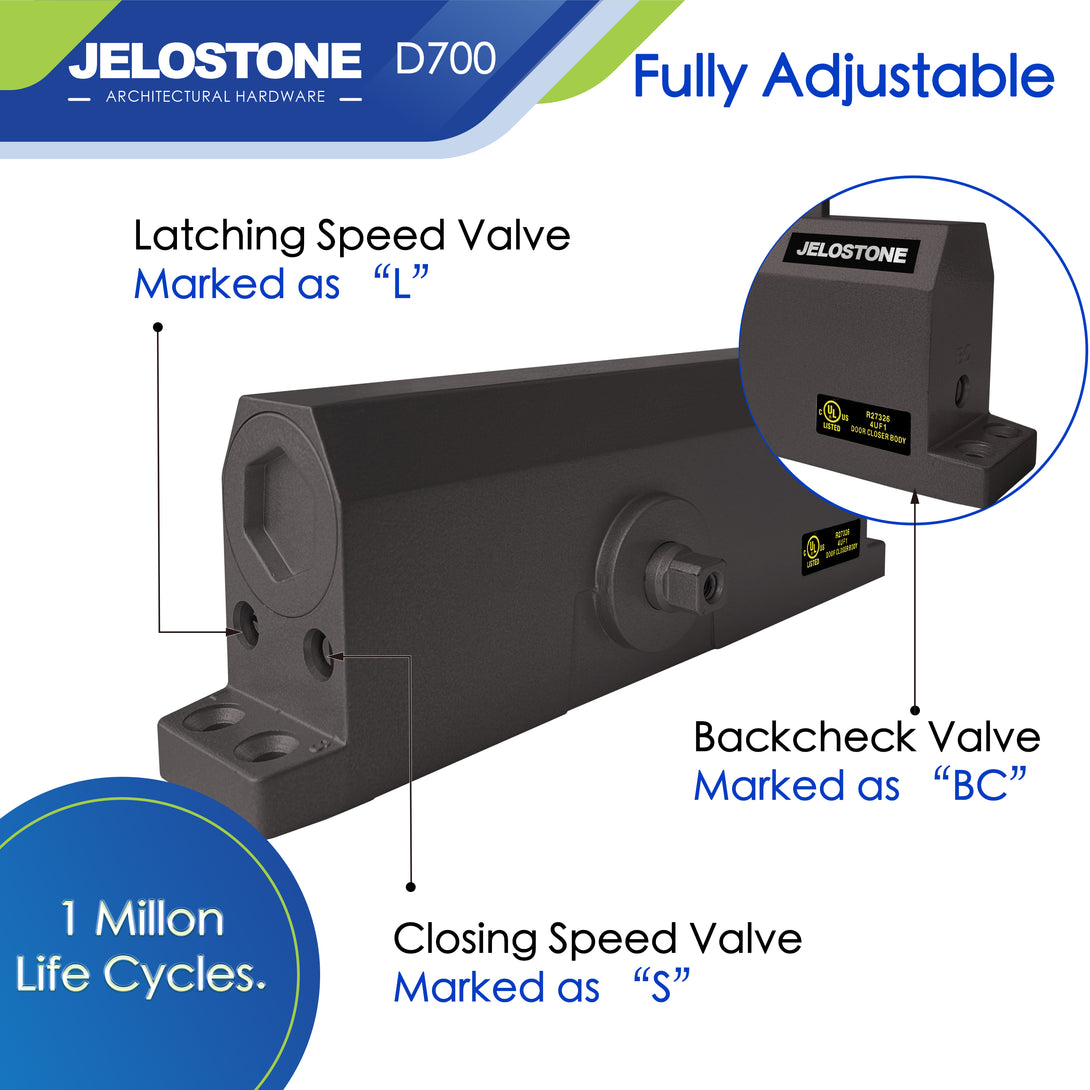

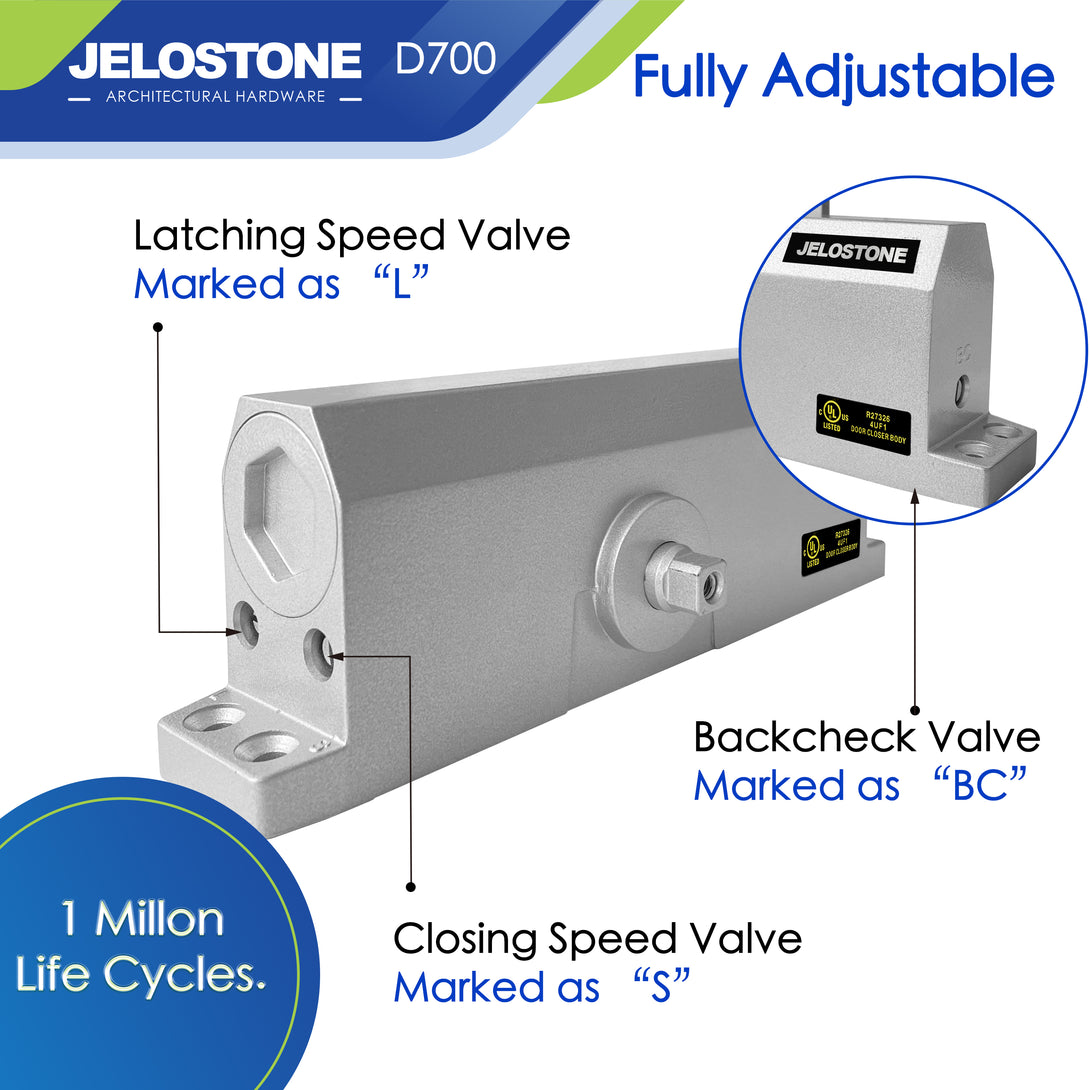

𝐄𝐧𝐡𝐚𝐧𝐜𝐞𝐝 𝐀𝐝𝐣𝐮𝐬𝐭𝐚𝐛𝐢𝐥𝐢𝐭𝐲
- Fixed size #3 spring power accommodates doors weighing 55lb-150lb.
- Backcheck valve prevents rapid door opening and slamming into walls.
- Latching speed valve ensures secure closure without finger entrapment.
- General speed valve for a gentler closing
𝐒𝐭𝐲𝐥𝐢𝐬𝐡 𝐃𝐞𝐬𝐢𝐠𝐧𝐞𝐝
| Manufacturer | JELOSTONE |
| Item model number | JS-D700 |
| Item Weight | 5.6 Pounds |
| Specification Met | ISO 9001, UL |
| Size | 12.6 x 4.1 x 3.3 inches |

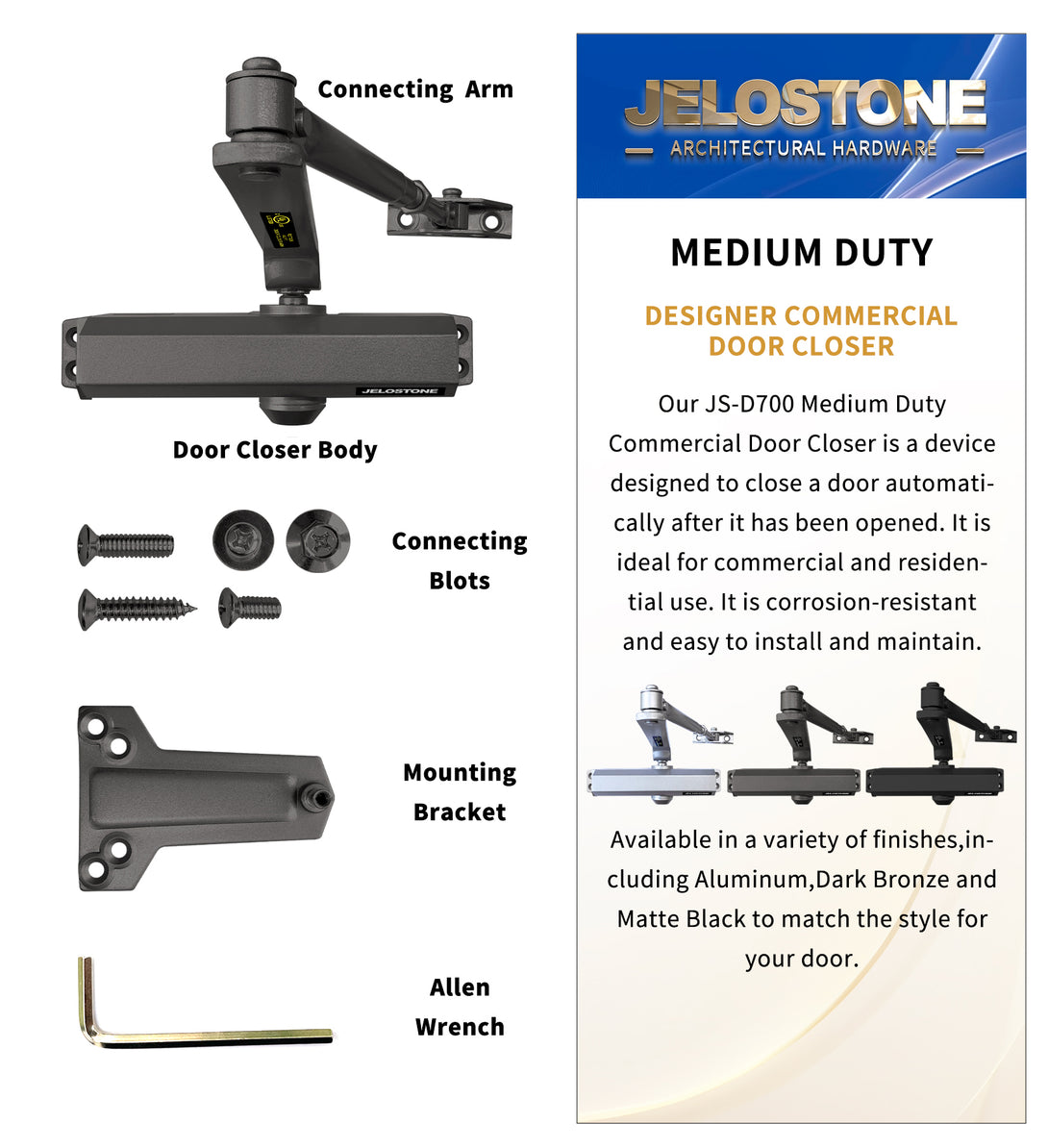

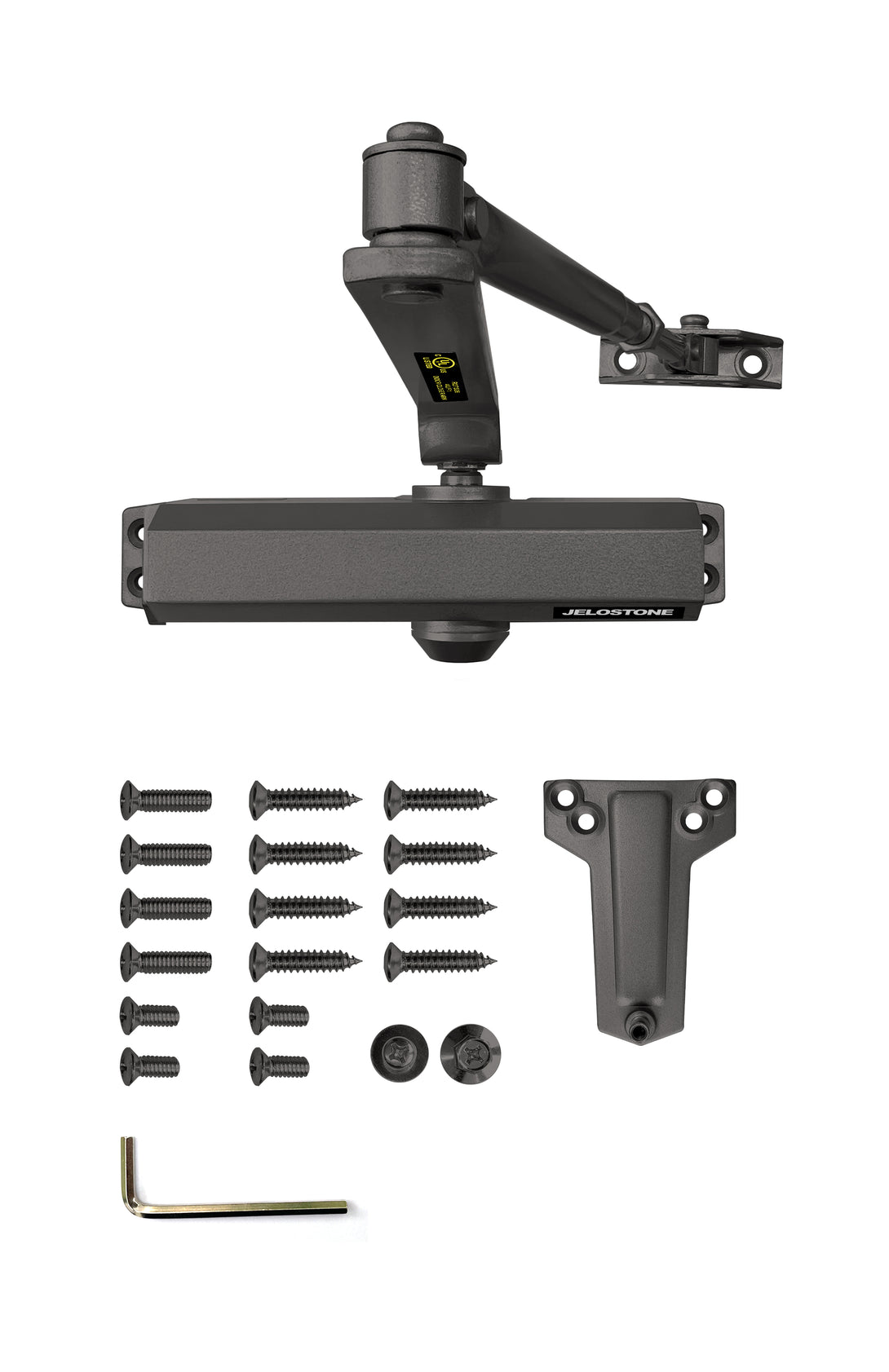

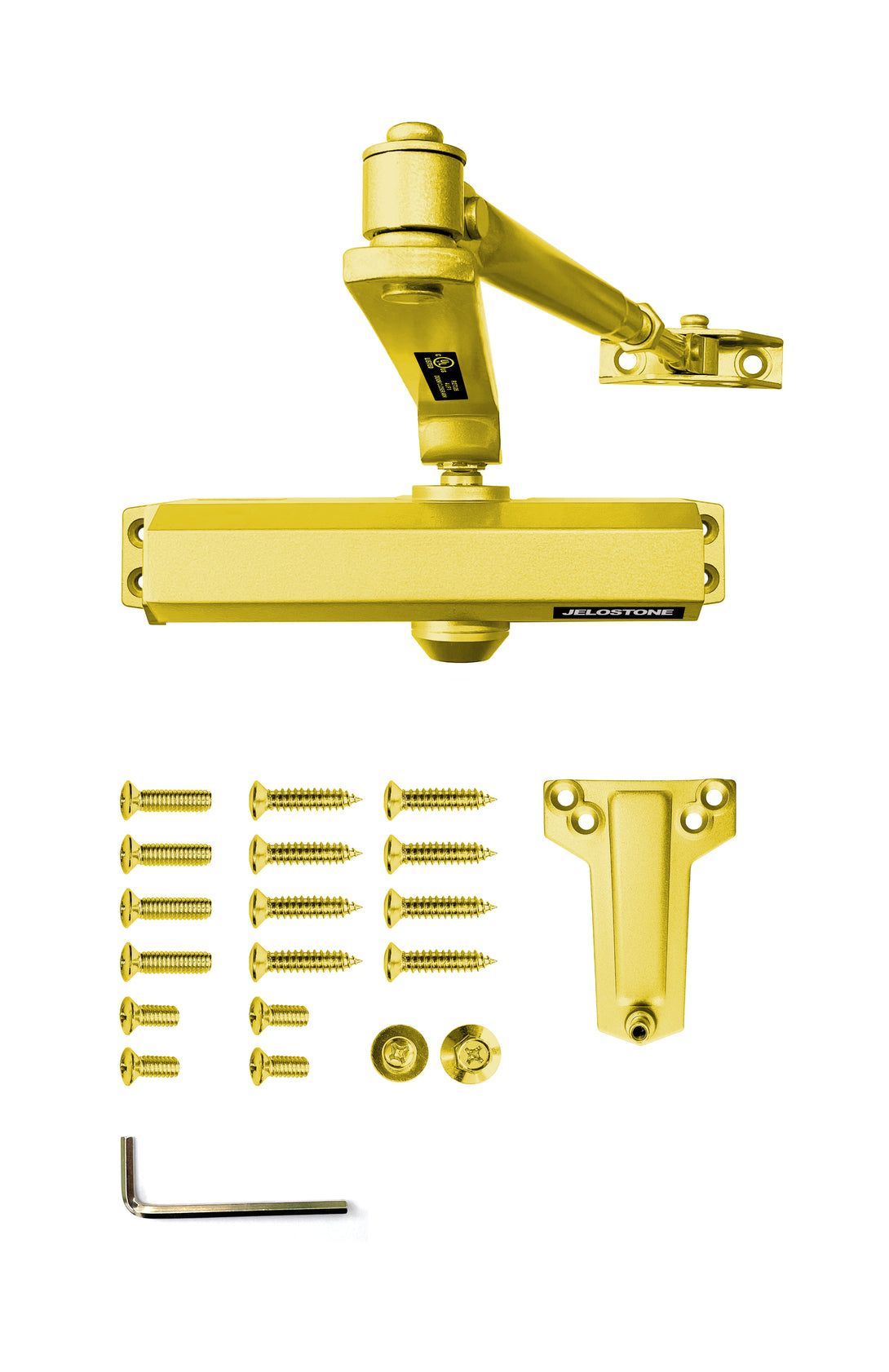

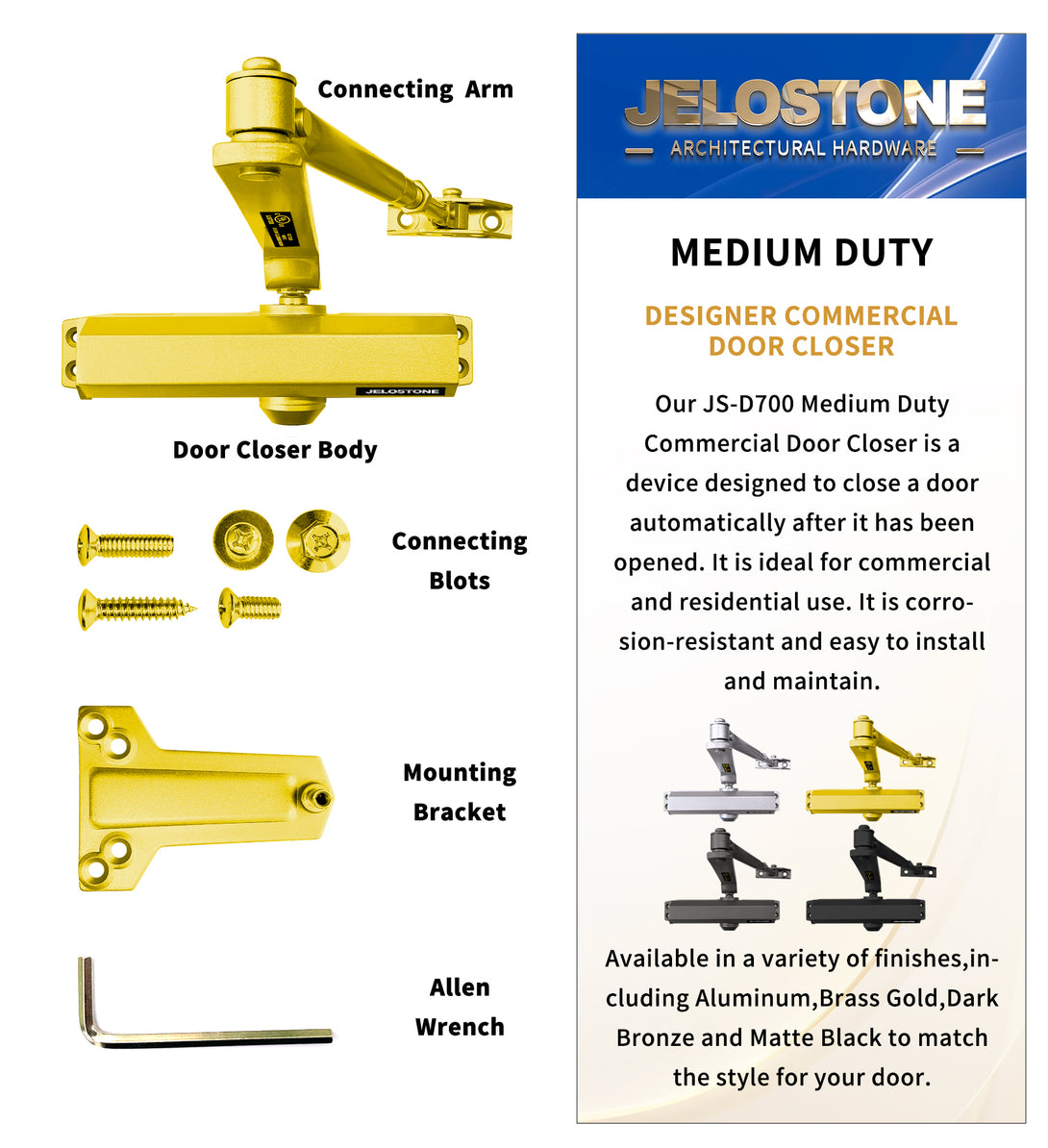

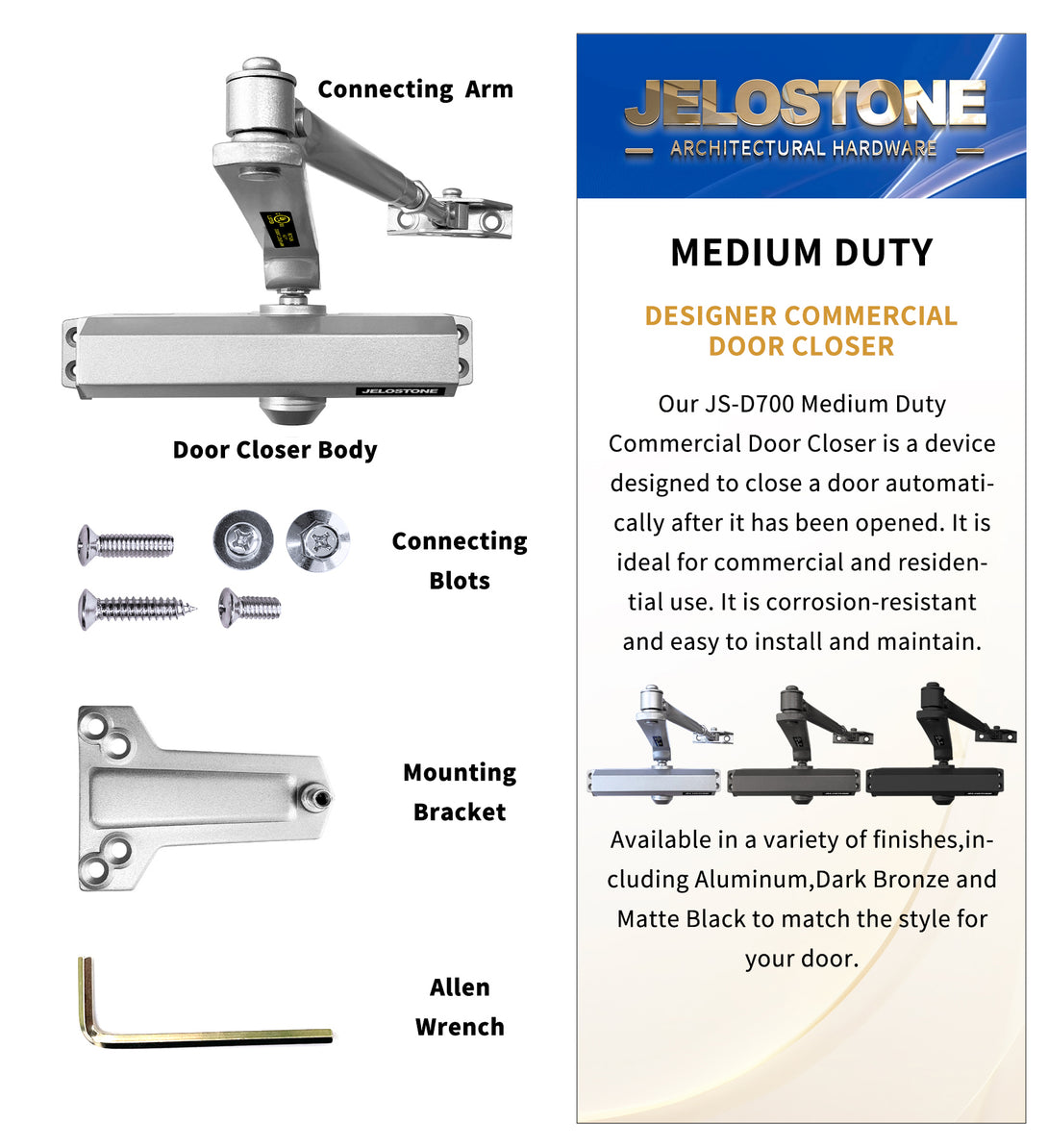

| Included Components | Brackets and Soffit Plate to allow Reqular/Top Jamb/Parallel Arm Installations |
| Installation Type | Screw-In |
| Closer Body Material | CAST ALUMINUM |
| ADJUSTMENTS VALVES | 3 valves(Closing, Latching speed & Backcheck) |
| UL( 3 hours) | ✓ |
| Door Weight Max | 150 pounds |
| Door Width Max | up to 36'' |
| ANSI A156.4 | Grade 2 |
| Power Size | Fixed Power #3 |
| Usage | Offices and Suite Entry Doors |

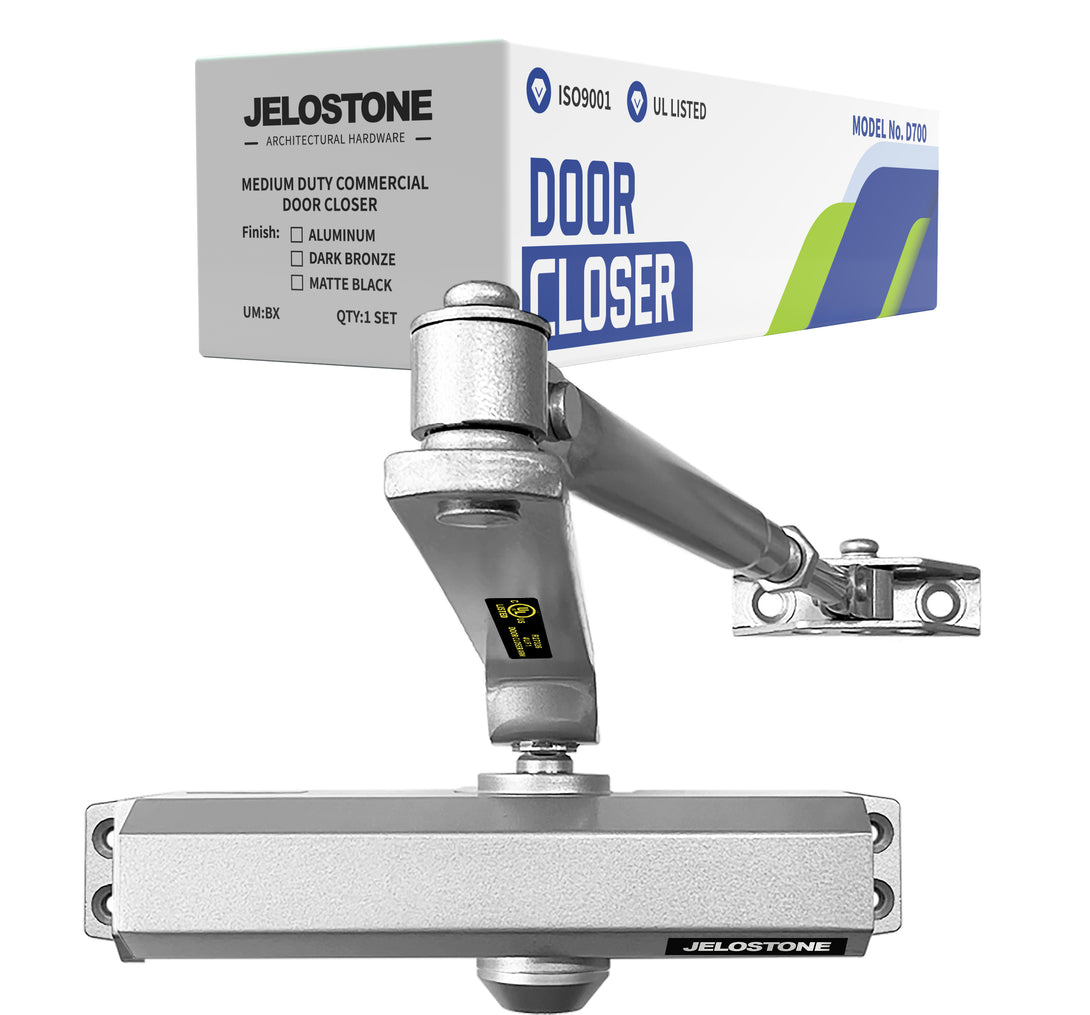

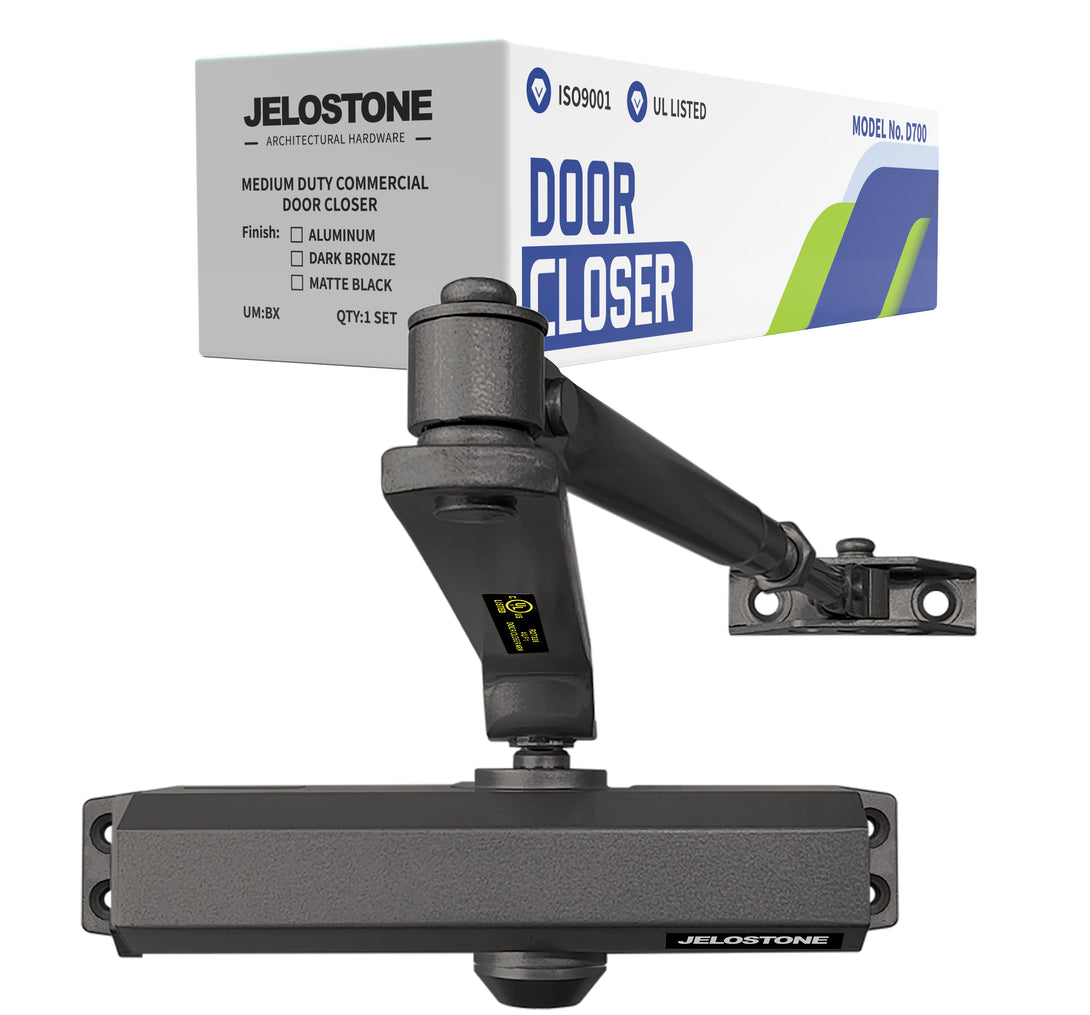

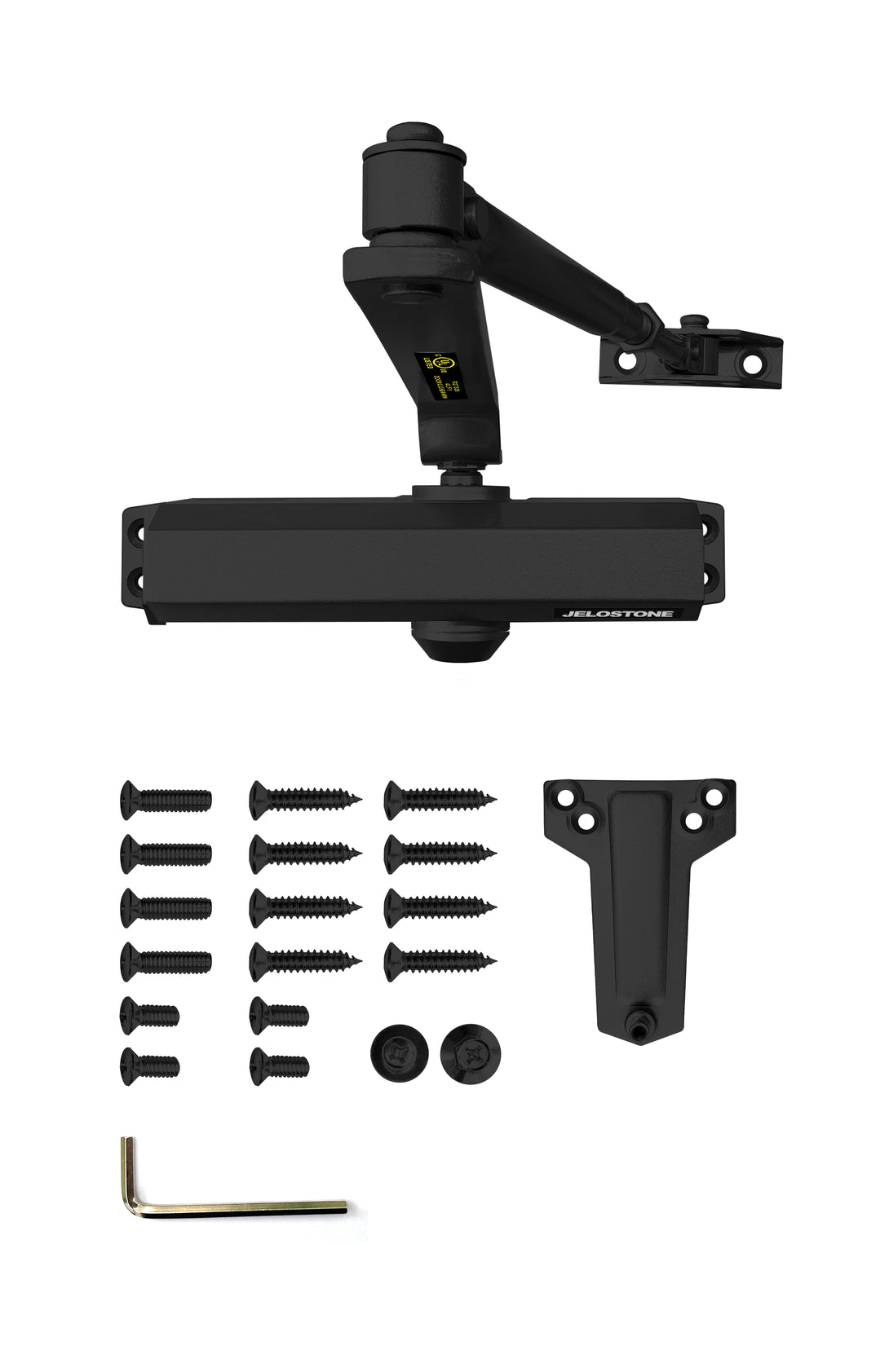

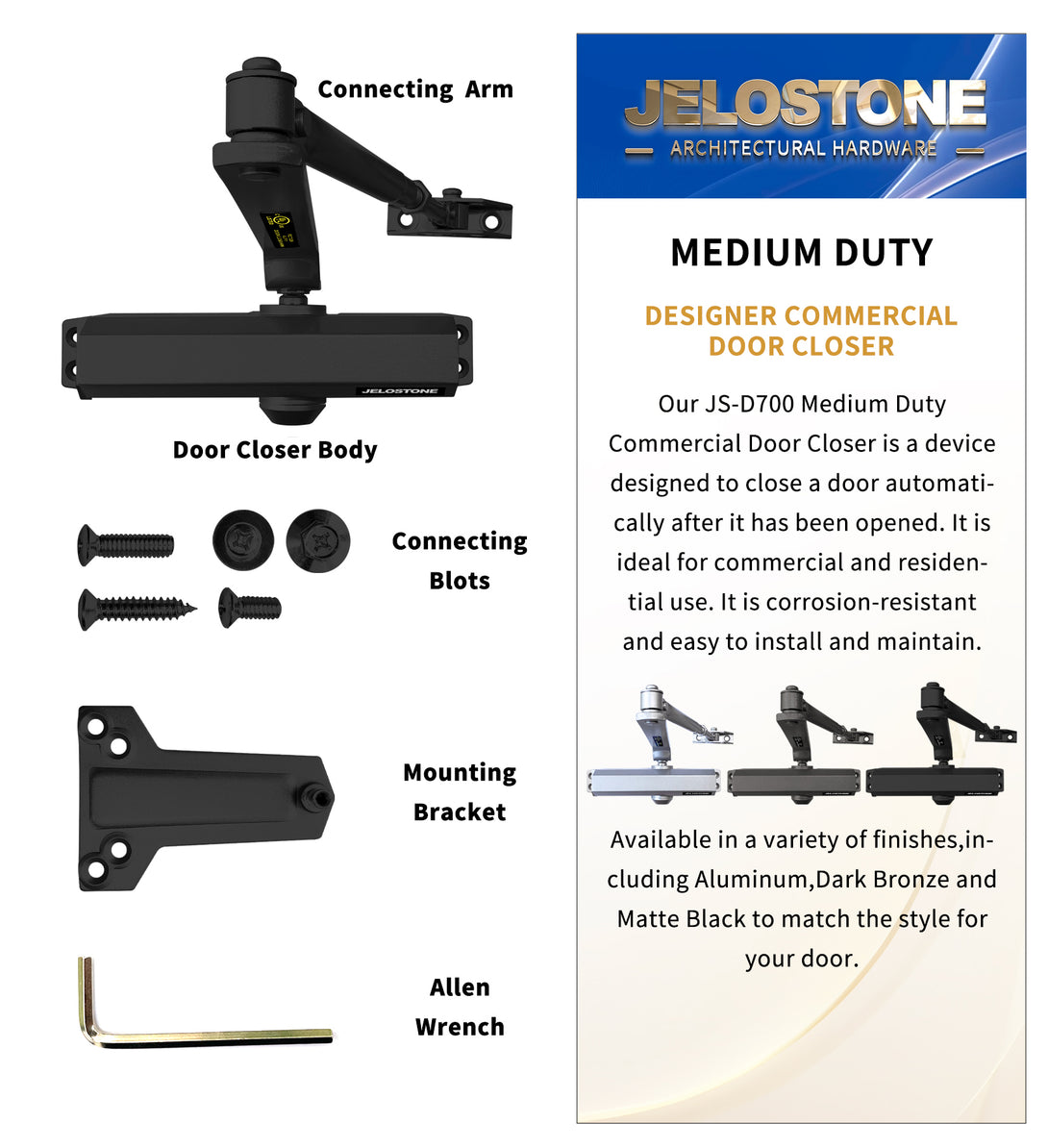

| Available Finishes | Aluminum, Dark Bronze and Matte Black |
